Description

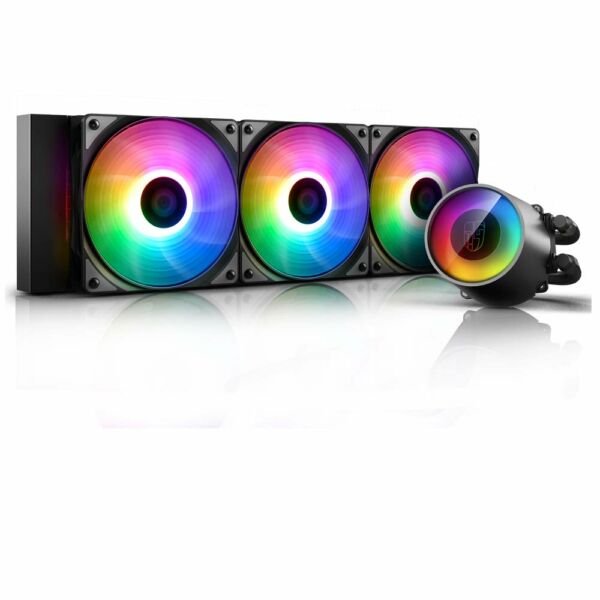

CPU LIQUID COOLER – Castle 360RGB V2
Anti-leak Tech Inside liquid cooling system equipped.
Double window panes and immersive ambient lighting ready to provide a perfect display of aesthetic illumination.
16.7 M true color RGB flowing light system with 5 in-built effects and 36 interchangeable lighting modes.
Motherboard and controller Addressable RGB SYNC control supported*
Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
The ceramic axle bearings and axle cores guarantee an ultra-long service life.
Supports mainstream INTEL and AMD socket mounting, including TR4/AM4.
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.
| Specification | |
| Fan Power Consumption | 2.04 W |
| Material | Radiator Material = Aluminum |
| Pump Rated Current | 0.21 A, Pump Power Consumption = 2.52 W |
| LED Type | Addressable RGB LED |
| Tube Length | 465 mm |
| LED Connector | 3-pin(+5V-D-G) |
| Pump Connector | 3-pin |
| Pump Speed | 2550 RPM±10% |
| Fan Dimension | 120×120×25 mm |
| Fan Speed | 500~1800 RPM±10% |
| LED Rated Voltage | 5 VDC |
| Fan Airflow | 69.34 CFM |
| LED Power Consumption | 2.25 W（PUMP）/ 7.2 W（FAN×3） |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise Level (dB-A) | ≤30 dB(A), Fan Connector = 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Dimension | Pump Dimensions = 91×79×71 mm, Radiator Dimensions = 402×120×27 mm |
| Fan Rated Current | 0.17 A |
| Power Consumption | LED Type = Addressable RGB LED, LED Connector = 3-pin(+5V-D-G), LED Rated Voltage = 5 VDC, LED Power Consumption = 2.25 W（PUMP）/ 7.2 W（FAN×3） |
| Pump Noise | 17.8 dB(A) |
| Pump Rated Voltage | 12 VDC |
| Warranty | 3 Years |
