Description

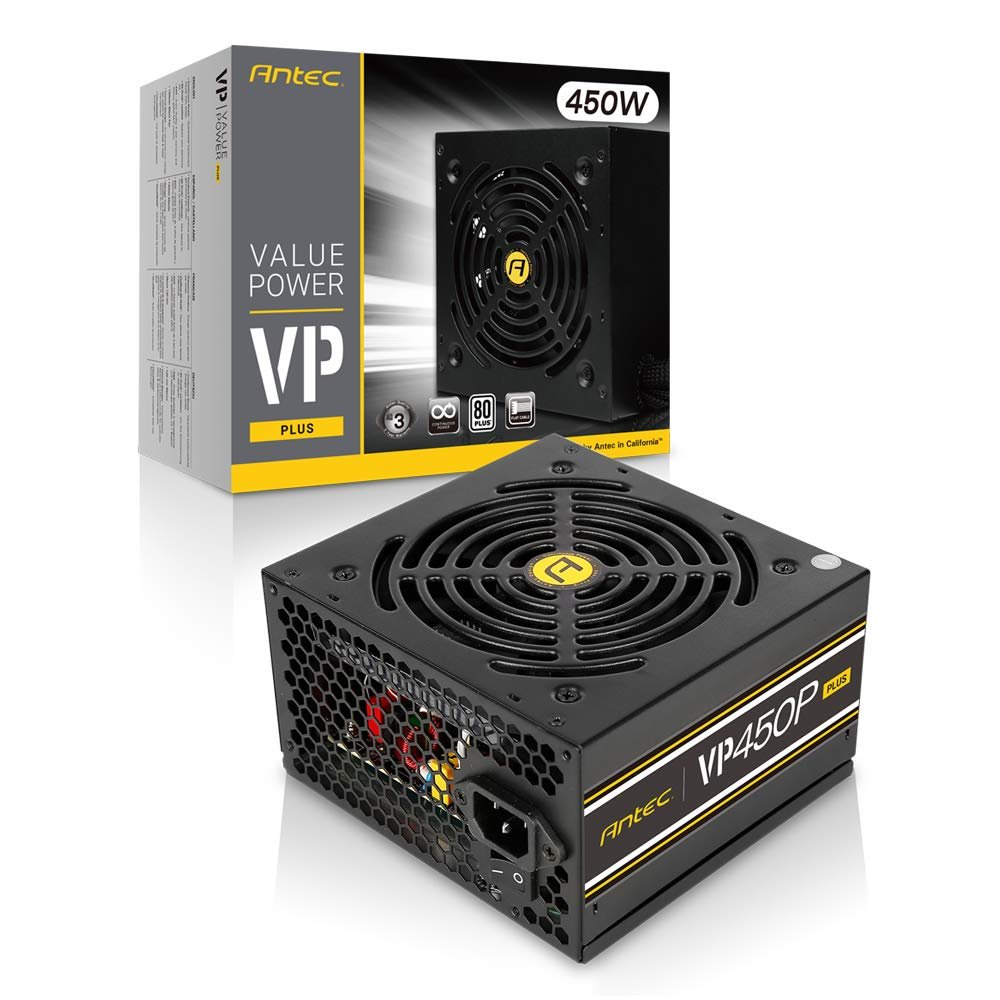

ANTEC VP450P PLUS 80 PLUS SMPS
Wattage 450 Watt
Series VP
Certification 80+ WHITE
Modular NA
PCIe Connector (6+2) 2
SATA Connector 7
Peripheral (4-Pin) 2
Warranty 3 Years
Features
The new generation of VP450P PLUS is crafted for quality, performance, and incredible value. This entry-level solution is rated from 450W to 700W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS® 230V Standard certified.
Delivering up to 85% efficiency,
the VP P PLUS series utilizes active PFC, and Japanese capacitors, and provides efficiency during max and low loads—living up to the performance standards that we are known for.
3-Year Warranty:
We stand by the quality and safety of the VP_P PLUS Power Supplies, offering 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
Efficiency Load:
AC INPUT: 230V
120 mm Silent Fan
The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation. Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management, and will allow your PSU to stay at an optimal temperature.
Continuous Power – Guaranteed 450W Continuous Power from Antec
80 PLUS® 230V Standard Certified – Up to 85% efficient, to reduce your electricity bill
AQ3 – Antec Quality 3-year warranty
120mm Silent Fan
Thermal Manager – An advanced low voltage fan control for optimal heat & noise management
CircuitShield™ – Full suite of industrial-grade protections: OVP/SCP/OPP/NLO
Multi PCI-E – 2 PCI-E connectors for multiple GPU support
Specifications
| Model | VP450P PLUS |
| Modular | Non-Modular |
| Dimension (W x L x H) | 140(D) x 150(W) x 86(H) |
| Input Voltage | 200-240 VAC ±10% |
| Input Current | 5A |
| Input Frequency Range | 50-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 85% Typically |
| Protection | OVP / SCP / OCP / NLO |
| Output Capacity | 450W |
| Regulatory | CB / CE |
| Fan | 120mm Silent Fan |
| Certifications | 80 Plus |
| Connector | · 1 x MB 24(20+4) Pin
· 1 x 8(4+4) Pin EPS 12V · 2 x 8(6+2) Pin PCI-E · 7 x SATA · 2 x Molex · 1 x FDD |
| Net Weight | 1.36 Kgs |
| Gross Weight | 1.64 Kgs |
| Warranty | 3 Years |
